Yamaha DXR15 MKII Active speaker

The Yamaha DXR15 MKII delivers exceptional clarity, powerful performance, and industry-leading SPL in a lightweight, durable enclosure. Combining a 1100W Class-D amplifier with Yamaha’s advanced DSP and high-efficiency transducers, this 15” powered speaker provides the ultimate balance of volume, fidelity, and portability. With built-in D-CONTOUR processing, you’ll enjoy enhanced low-end punch and a rich, full-range sound that feels like you’re running a subwoofer — all from one cabinet.

Since its introduction, the DXR Series has represented the fusion of raw power and precision engineering. The Yamaha DXR15 MKII refines this legacy, delivering even higher SPL (134dB) and incorporating a larger, lighter 1.75” neodymium HF compression driver for improved voice reproduction and musical detail. Co-developed with touring specialists NEXO, the DXR mkII Series benefits from real-world insight that ensures professional-grade performance for any application.

Whether for fixed installations, mobile DJs, live bands, or corporate events, the Yamaha DXR15 MKII delivers consistent reliability, exceptional clarity, and outstanding power — wherever your sound takes you.

• Speaker Components: 15" LF driver + 1.75" neodymium HF compression driver

• Amplifier Power: 1100W Class-D bi-amped (950W LF + 150W HF)

• Frequency Response: 49Hz – 20kHz

• Maximum SPL: 134dB

• Nominal Coverage: 90° x 60°

• Cabinet Material: Durable black ABS with continuous steel grille

• Mounting Options: 35mm pole mount (0° or 7° tilt), 3 x M10 x 18 rigging points

• DSP Processing: FIR-X Tuning™ crossover and D-CONTOUR (FOH/MAIN, MONITOR, OFF)

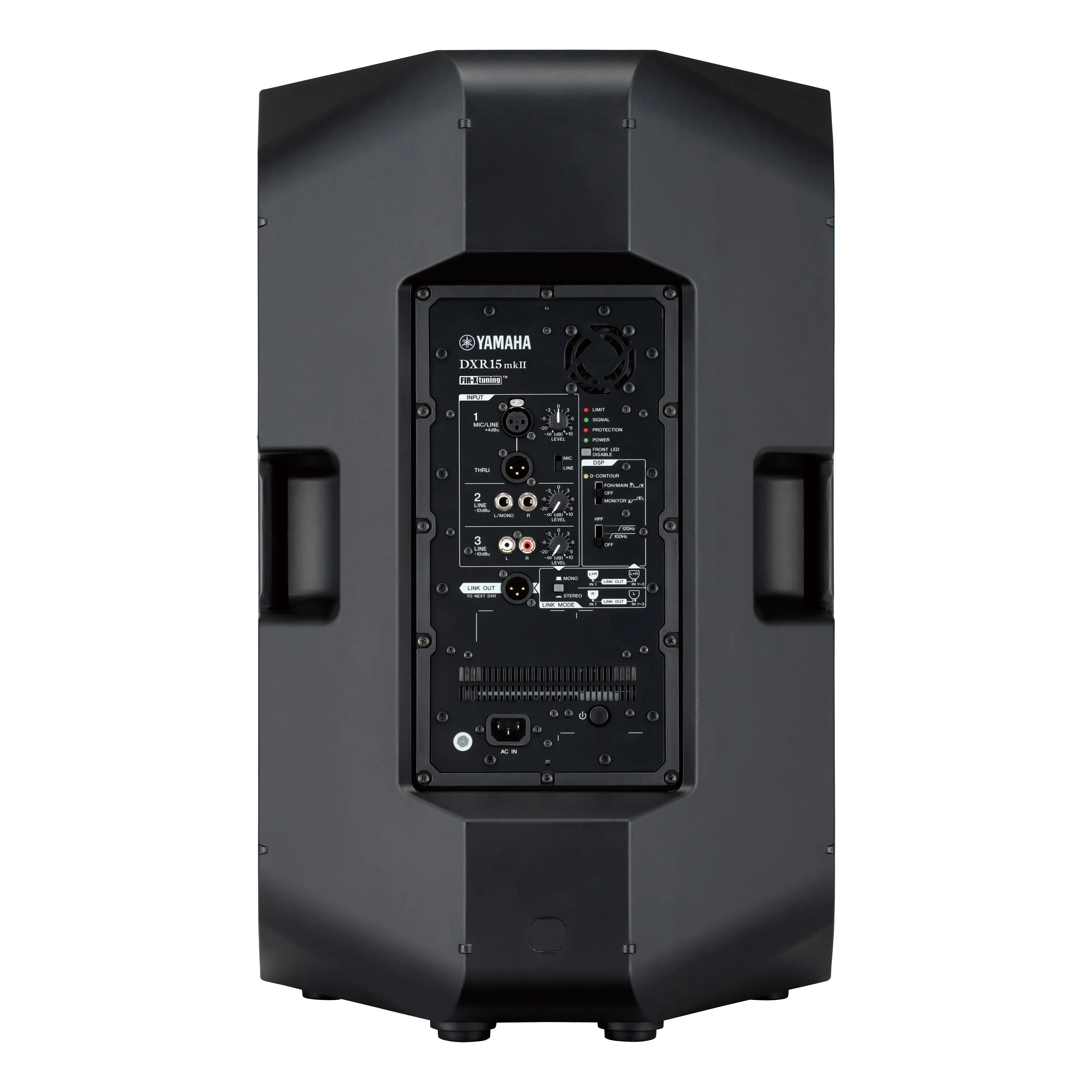

• I/O Connectors:

  • INPUT 1: XLR

  • INPUT 2: 2 x ¼” Phone

  • INPUT 3: 2 x RCA

  • THRU: XLR (parallel with INPUT 1)

  • LINK OUT: XLR

• Power Requirements: 100V–240V, 50/60Hz

• Power Consumption: 110W

• Dimensions (W x H x D): 445 x 700 x 380 mm

• Weight: 21.8 kg

---

Professional Design & Performance

The Yamaha DXR15 MKII integrates Yamaha’s proprietary DSP, offering precise control over frequency response and dynamics. D-CONTOUR processing optimises performance for front-of-house or monitor use, maintaining crystal-clear sound even at high volumes. Its rugged ABS housing and M10 rigging points make it ideal for touring, installations, and mobile PA setups.

From live performances to club installations and DJ events, the Yamaha DXR15 MKII is built to deliver power and precision — every time.

---

Specifications Summary

• Speaker Type: 15” 2-way bi-amp powered, bass-reflex design

• LF Driver: 15” cone, 2.5” voice coil, ferrite magnet

• HF Driver: 1.75” diaphragm, 1” throat compression driver, neodymium magnet

• Output Power: 1100W (Dynamic) / 700W (Continuous)

• Max SPL: 134dB @ 1m

• Material: ABS (matte black finish)

• Flying Points: Top x2, Rear x1

• Pole Socket: 35mm (0° or 7°)
